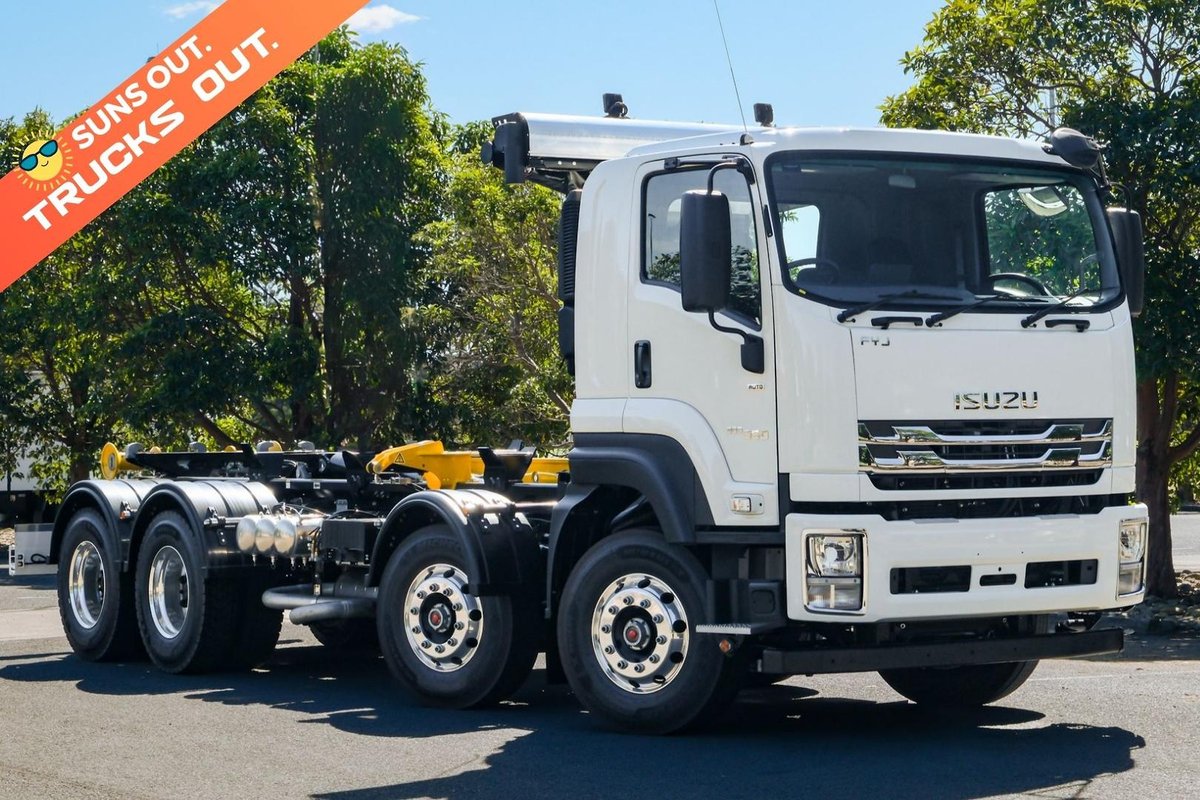

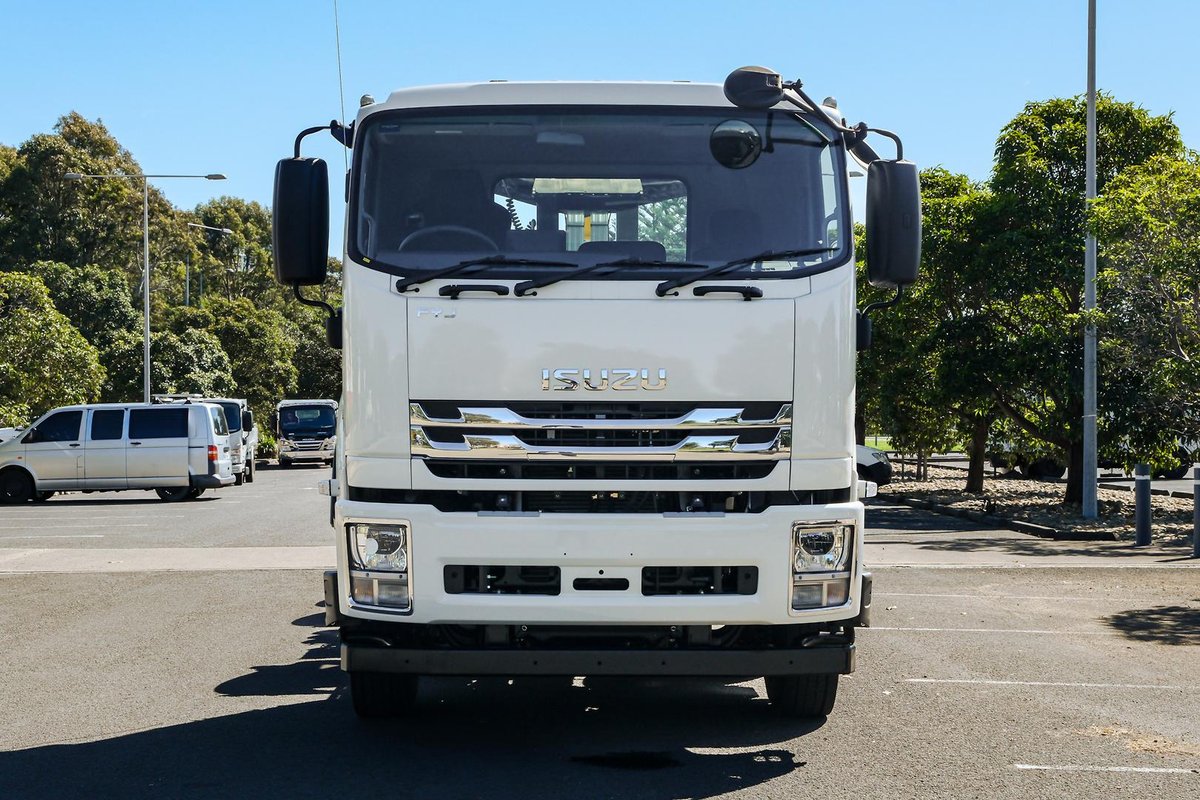

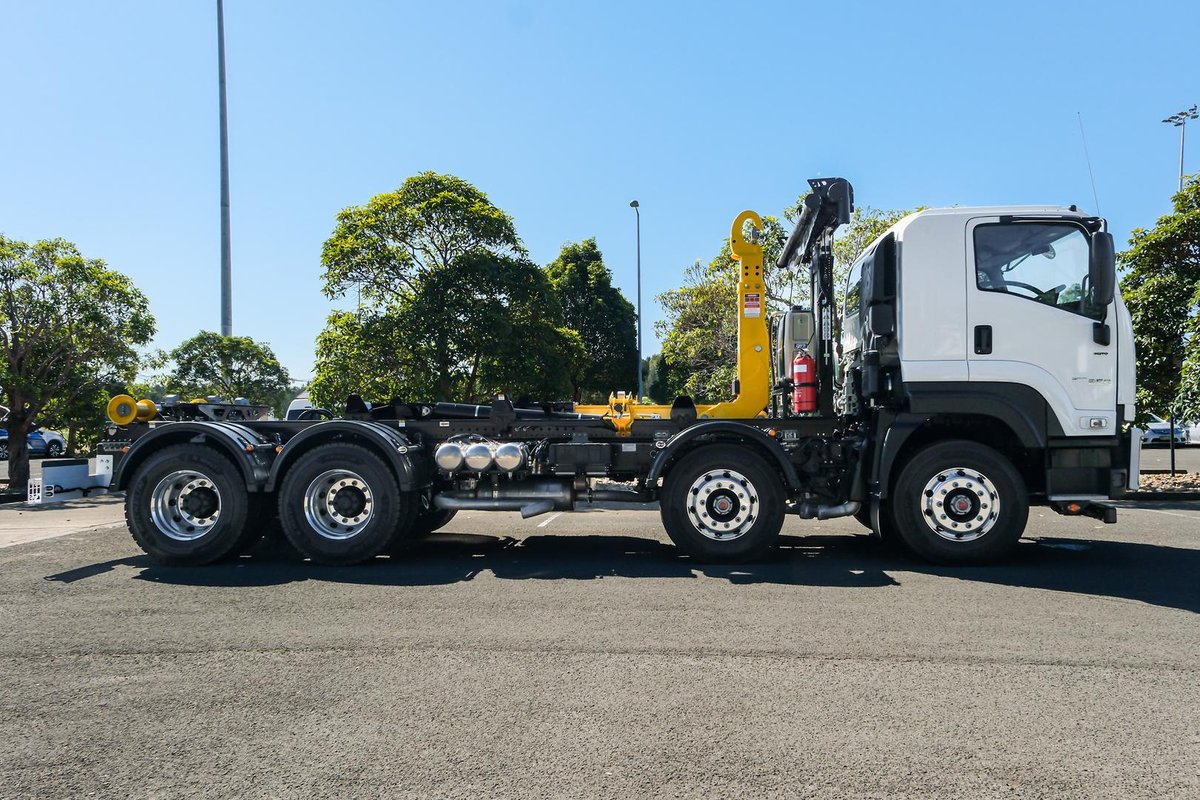

2025 Isuzu F Series FYJ300-350

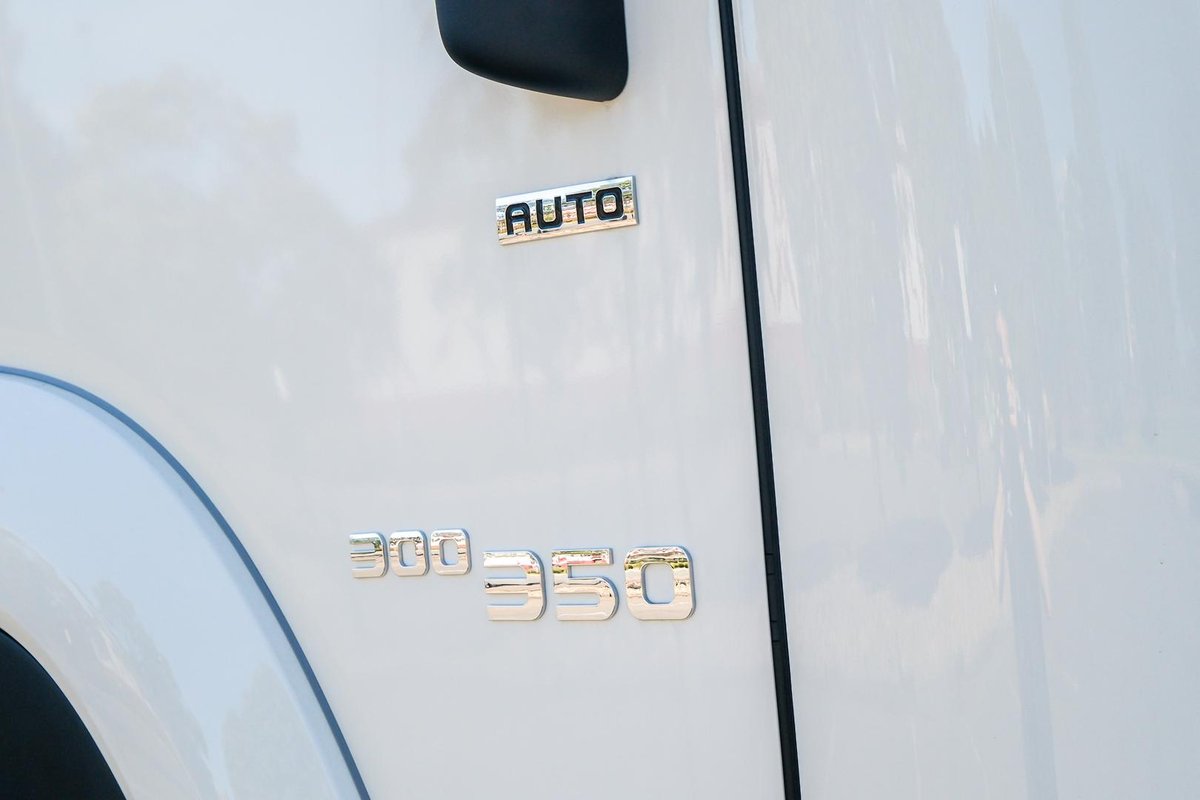

Isuzu FYJ 300-350 Auto MWB

Engine: Isuzu 6UZ1-TCN | 9.8L 6 Cylinder Turbo Diesel

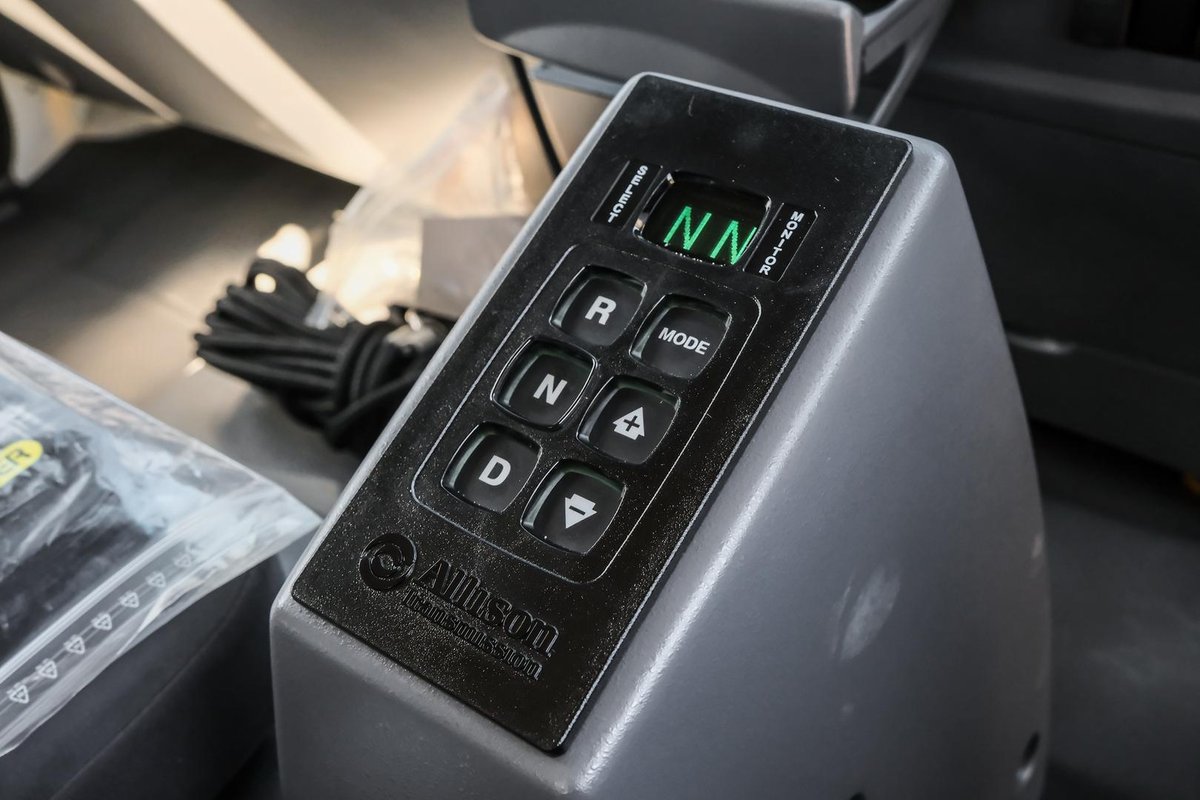

Transmission: Allison 4430 | 6 Speed Automatic Transmission
Power: 350 Hp | 257 kW @ 2,000 RPM
Torque: 1,422 Nm @ 1,400 RPM
Weight Rating: GVM: 30,000 Kg GCM: 45,000 Kg
Wheelbase: 5,770 mm

Safety Features:
ABS – Anti-Lock Braking System

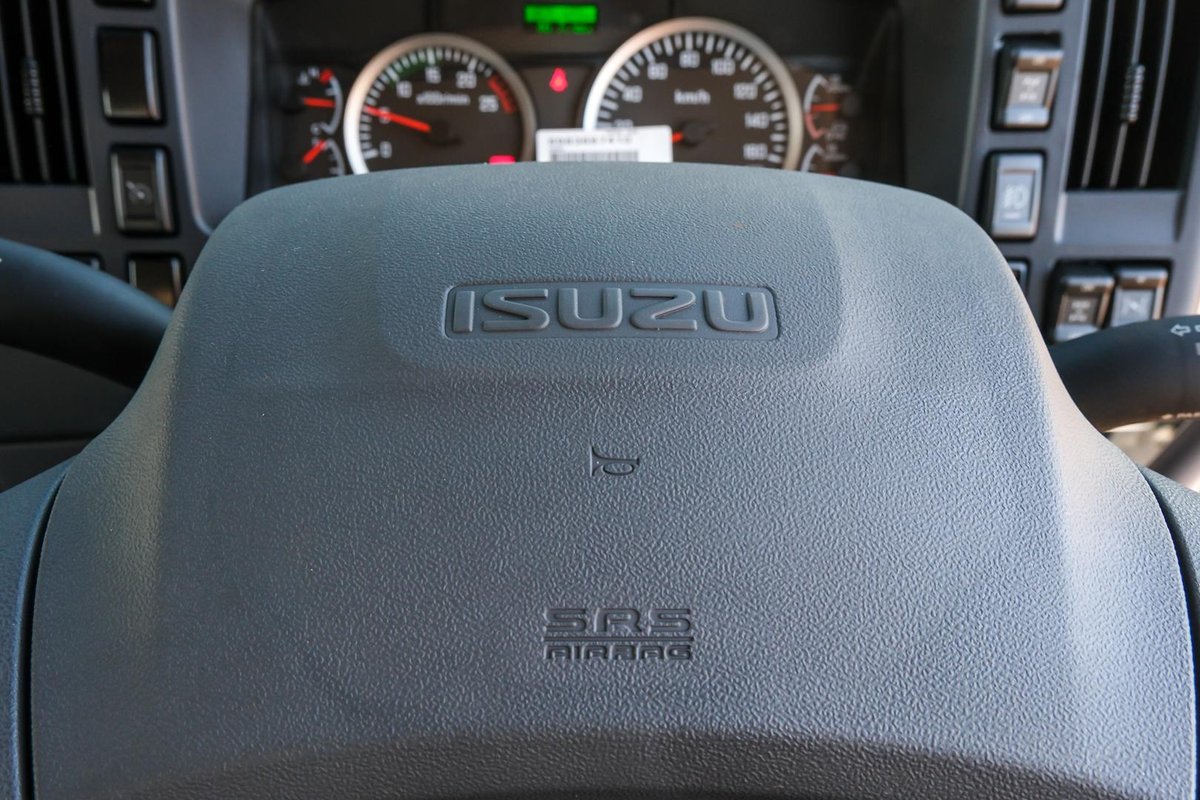

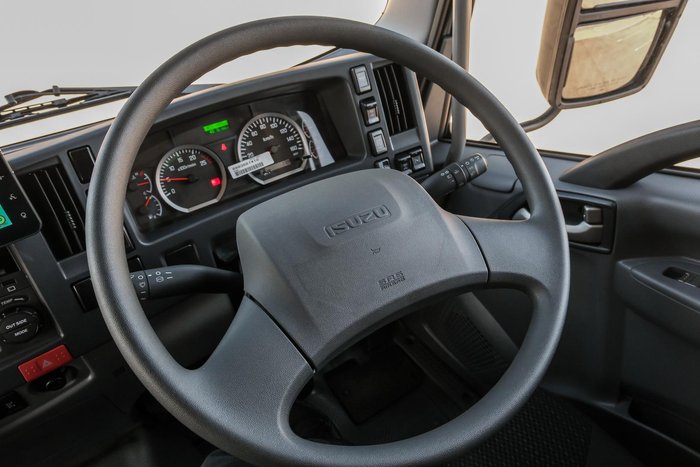

Driver Airbags
Driver Seatbelt Pre-Tensioners
ECE-R29 Compliant Cab

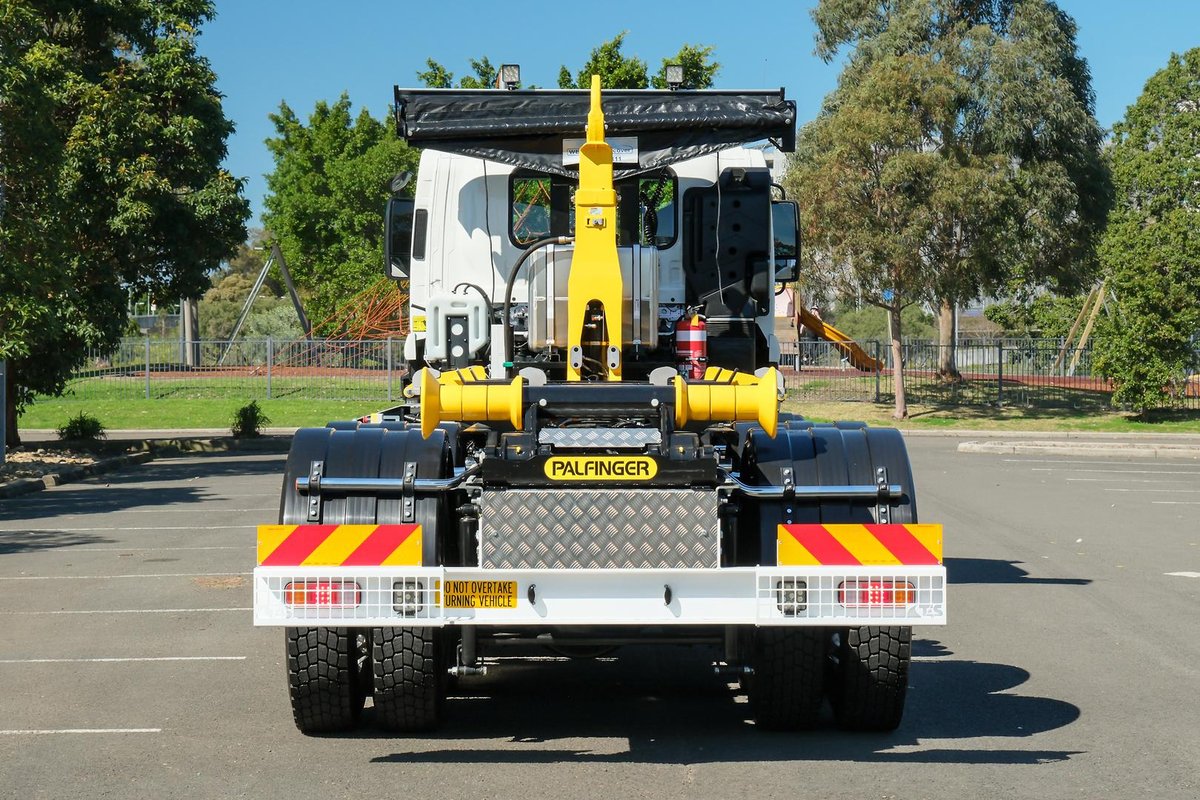

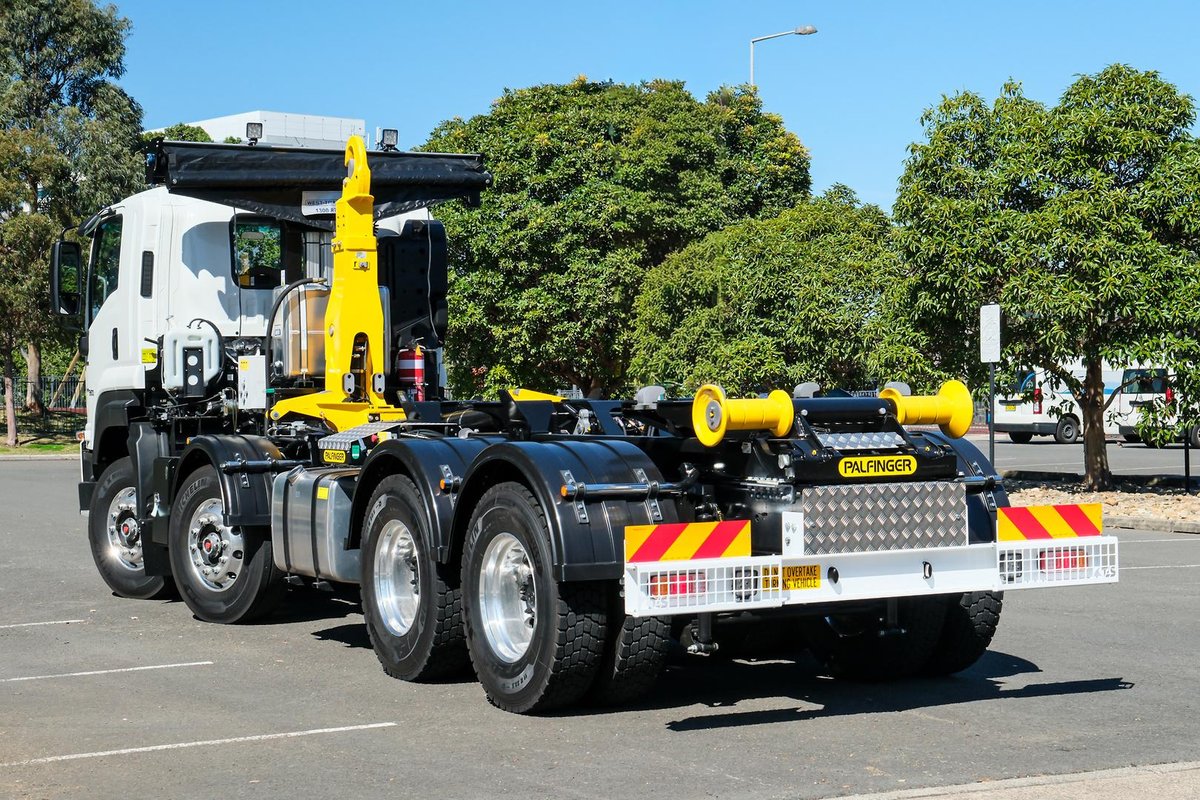

Palfinger
PH T22A DINO SLD 5
Standard items description
Palfinger chassis mounting kit
Hydraulic front bin locks (factory fitted)

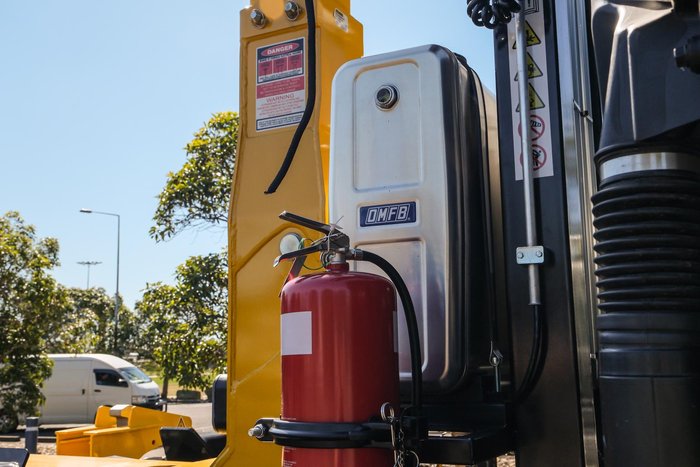

Oil tank mounted behind cab/hydratarp
Tool box black small 600x400x500 fitted
Mesh tarp box small 600x450x450 fitted
9 kg fire extinguisher
LED work lights on tarp x4

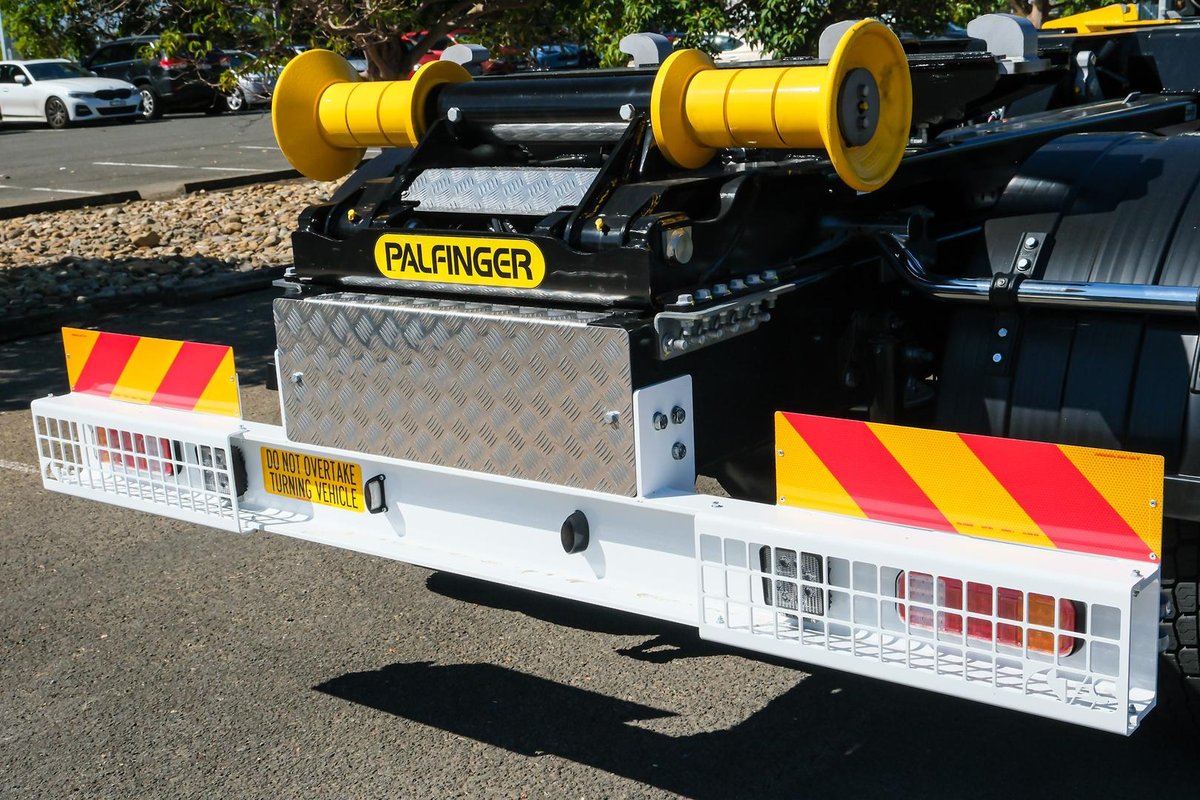

HD LED tail lights with mesh covers

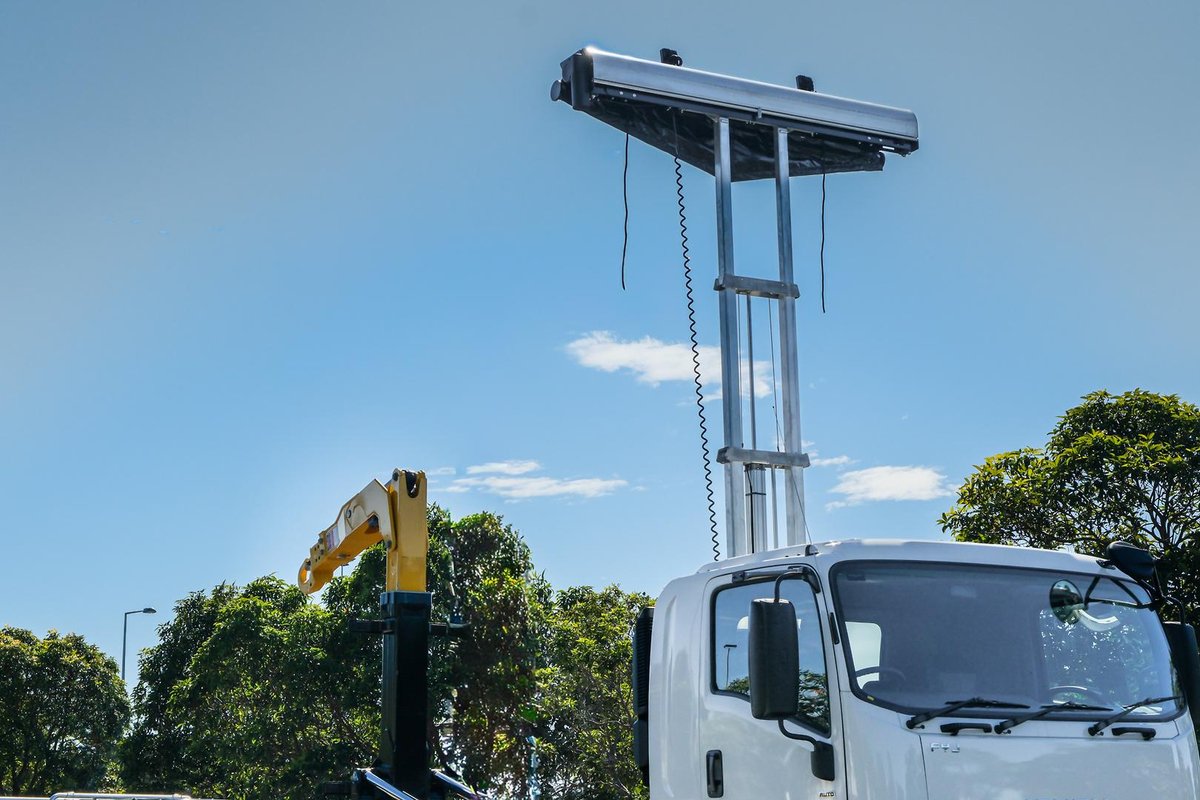

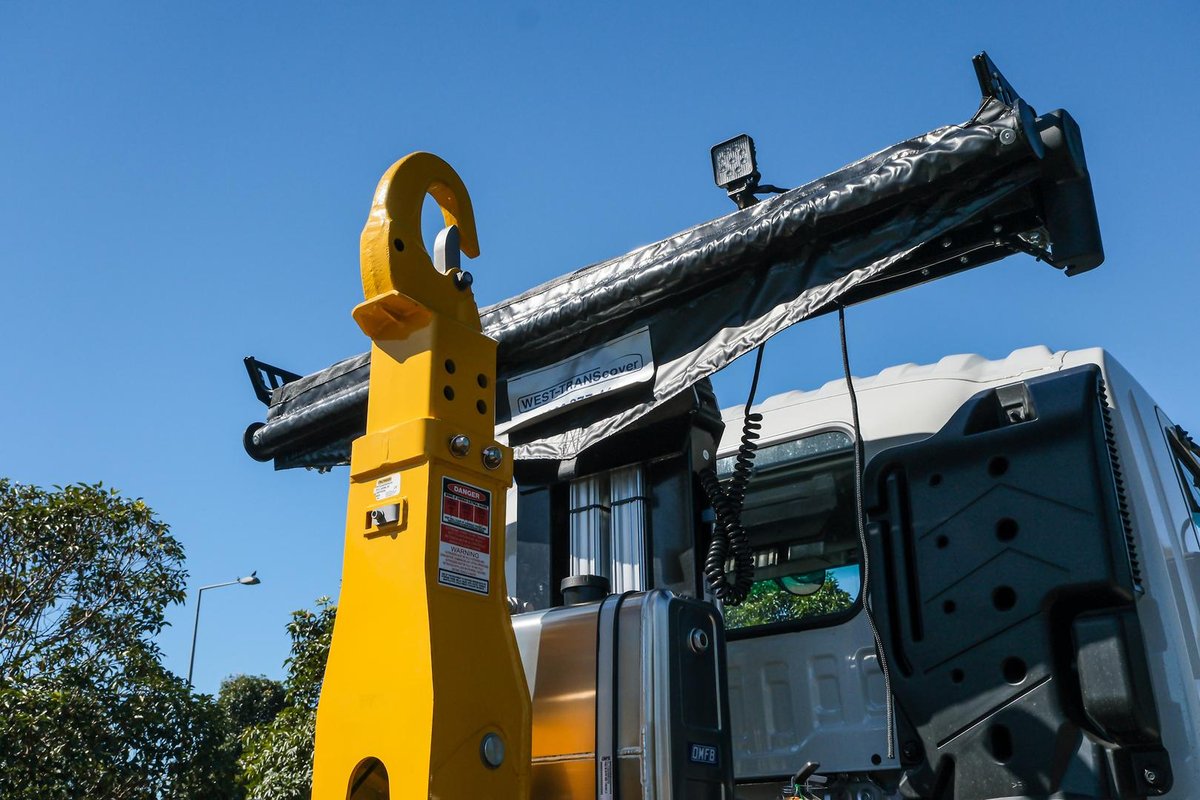

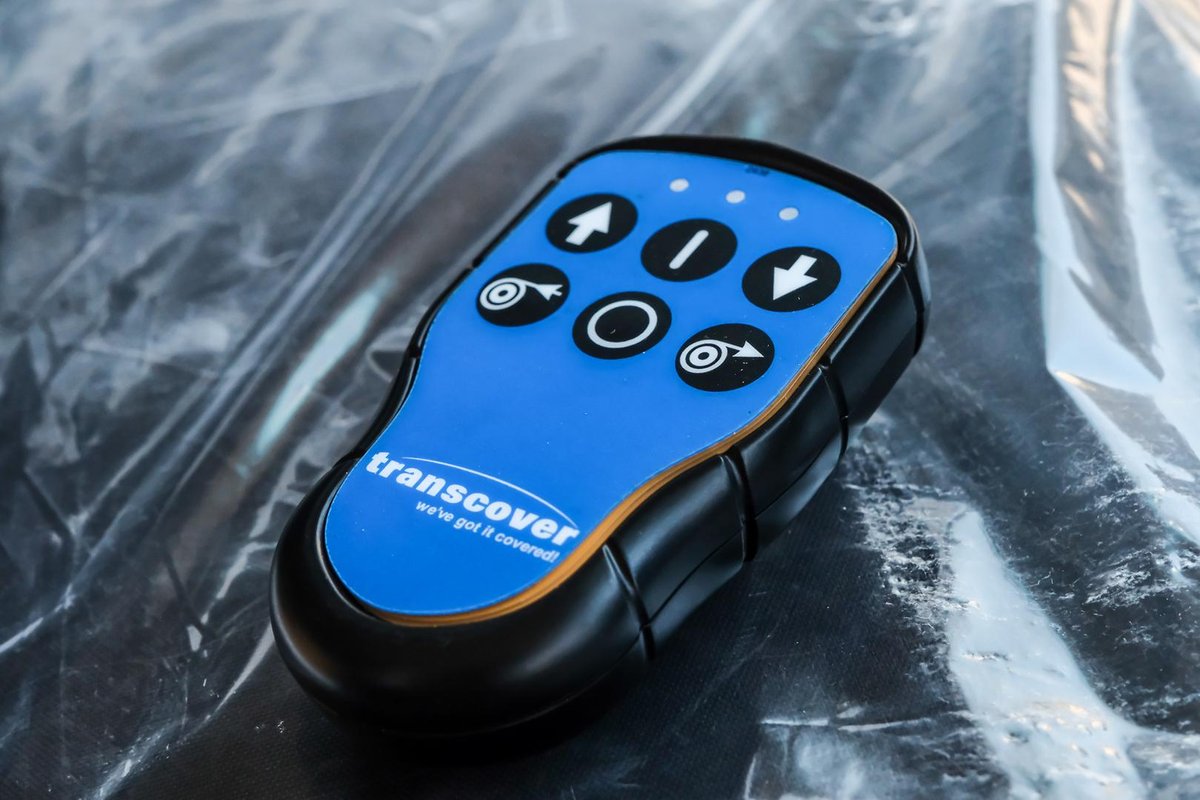

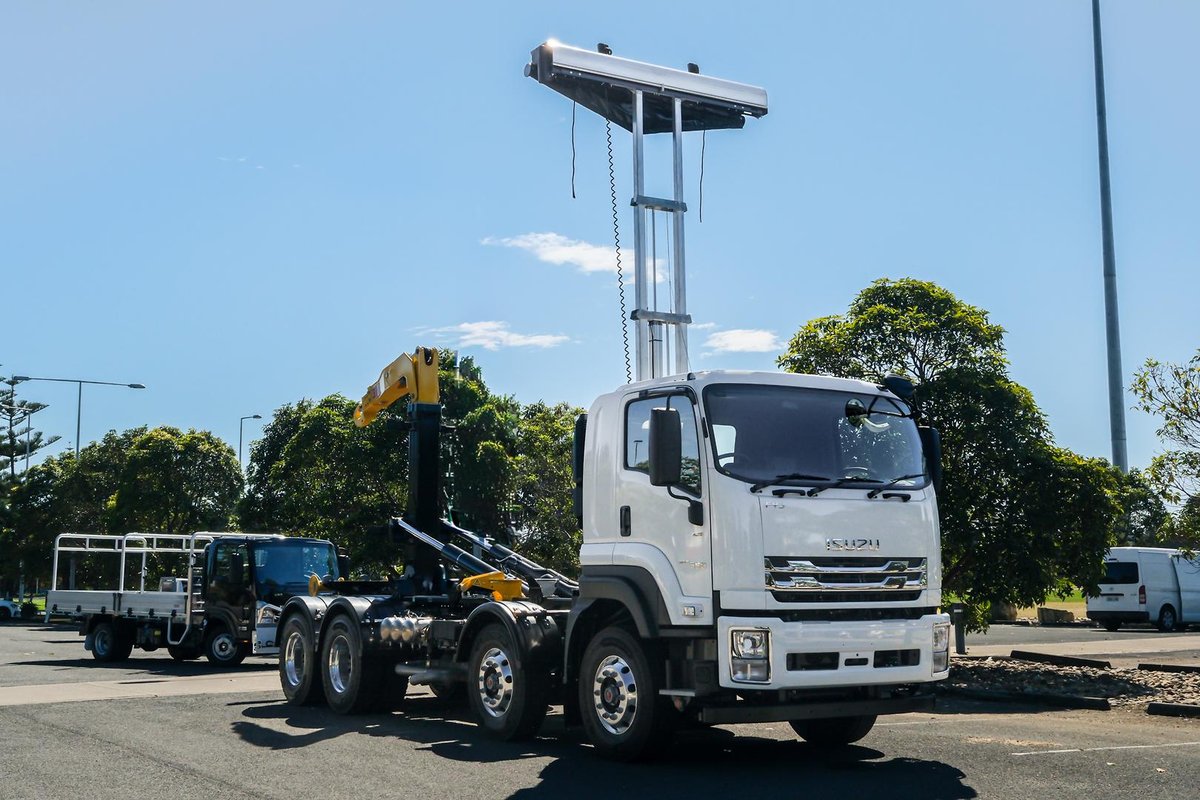

West-Trans HyCover Tarp System

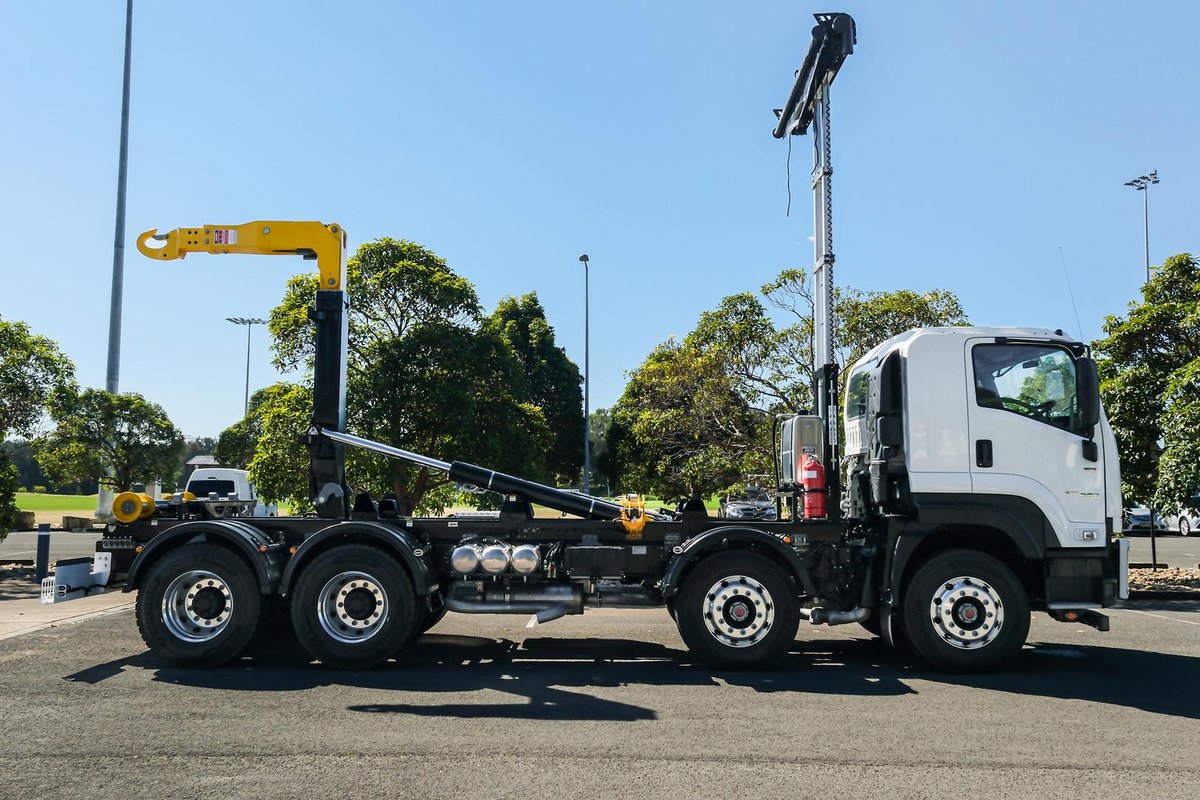

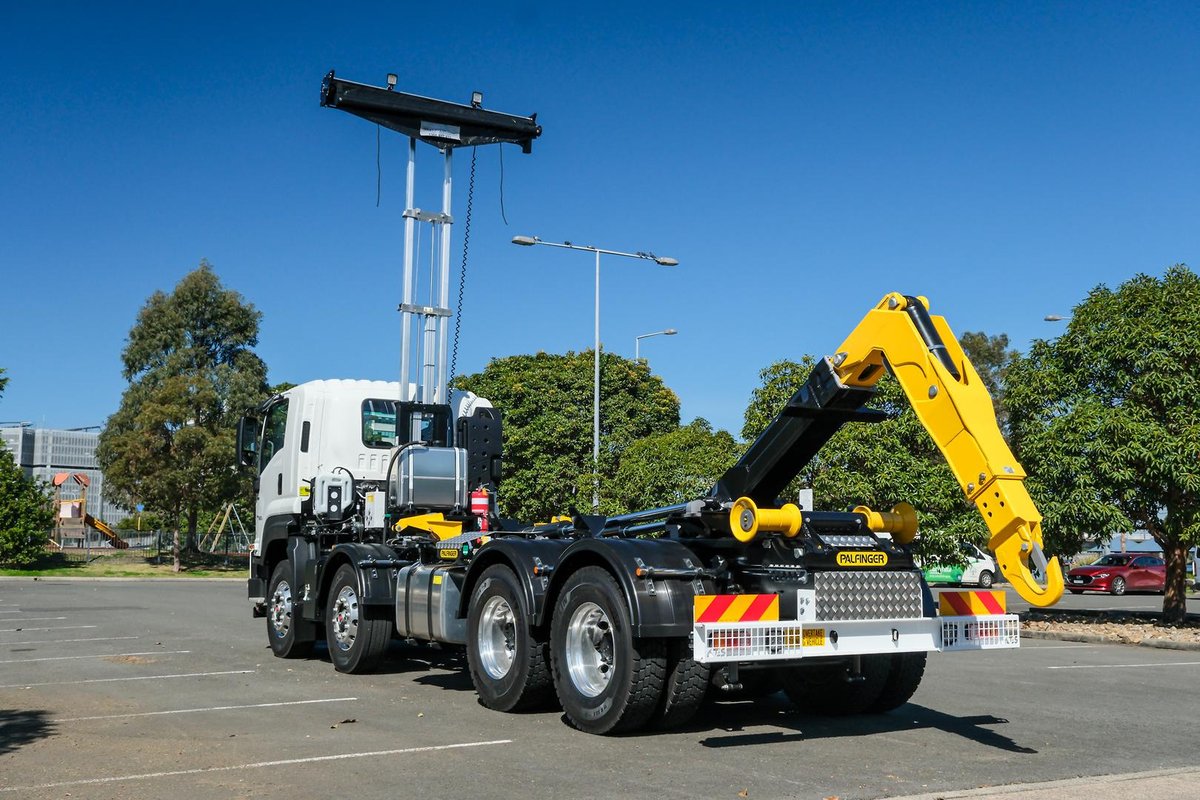

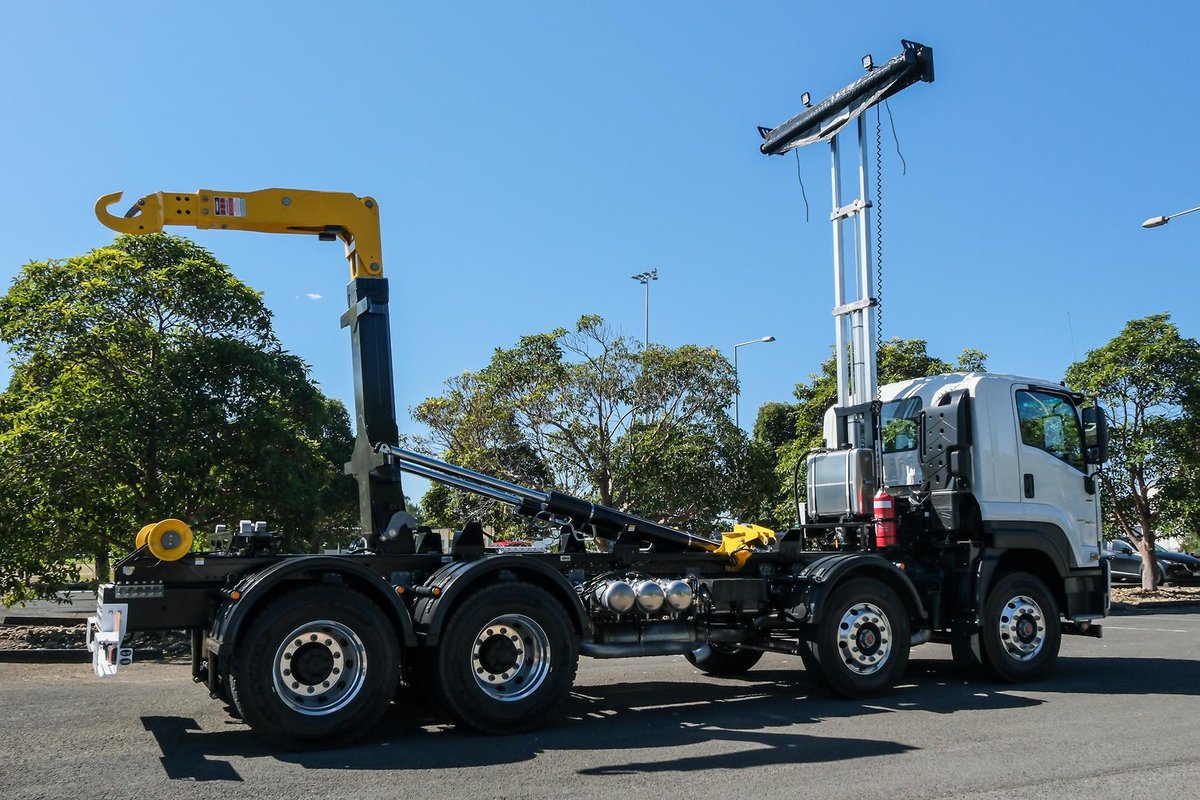

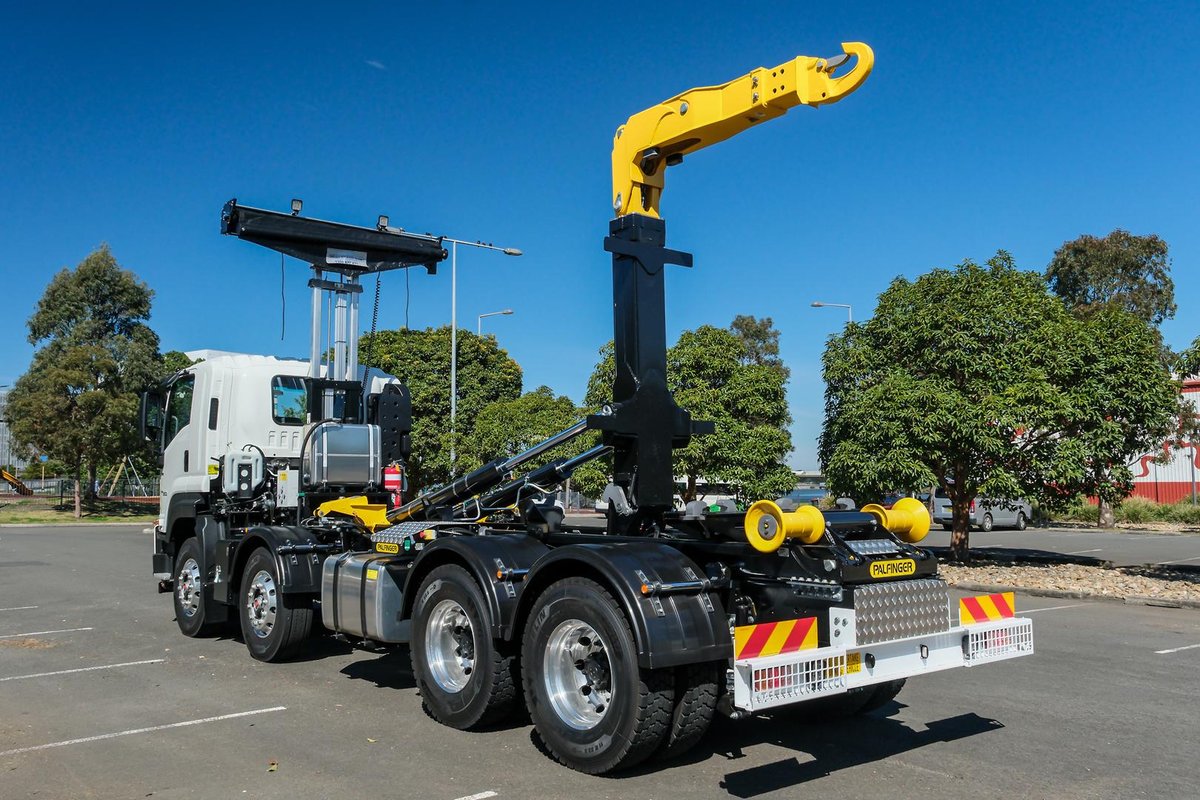

Palfinger Hookloader Features:
-
Low tare weight.
-
Soft stop on lowering side of main lift cylinders.
-
Safety interlock systems.
-
Load hold valves on lift, telescopic and bin lock cylinders.
-
High pressure and return line filters.
-
Bolted container rests
General technical data:
-
22 t maximum lifting capacity.
-

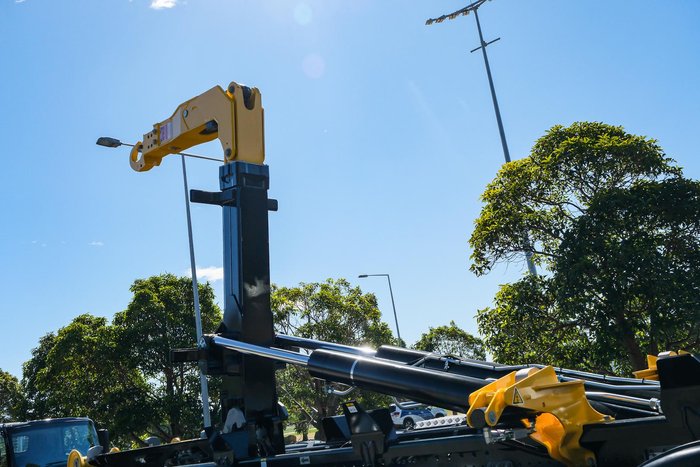

Telescopic & articulated hook arm.
-
6175 mm unit length.
-

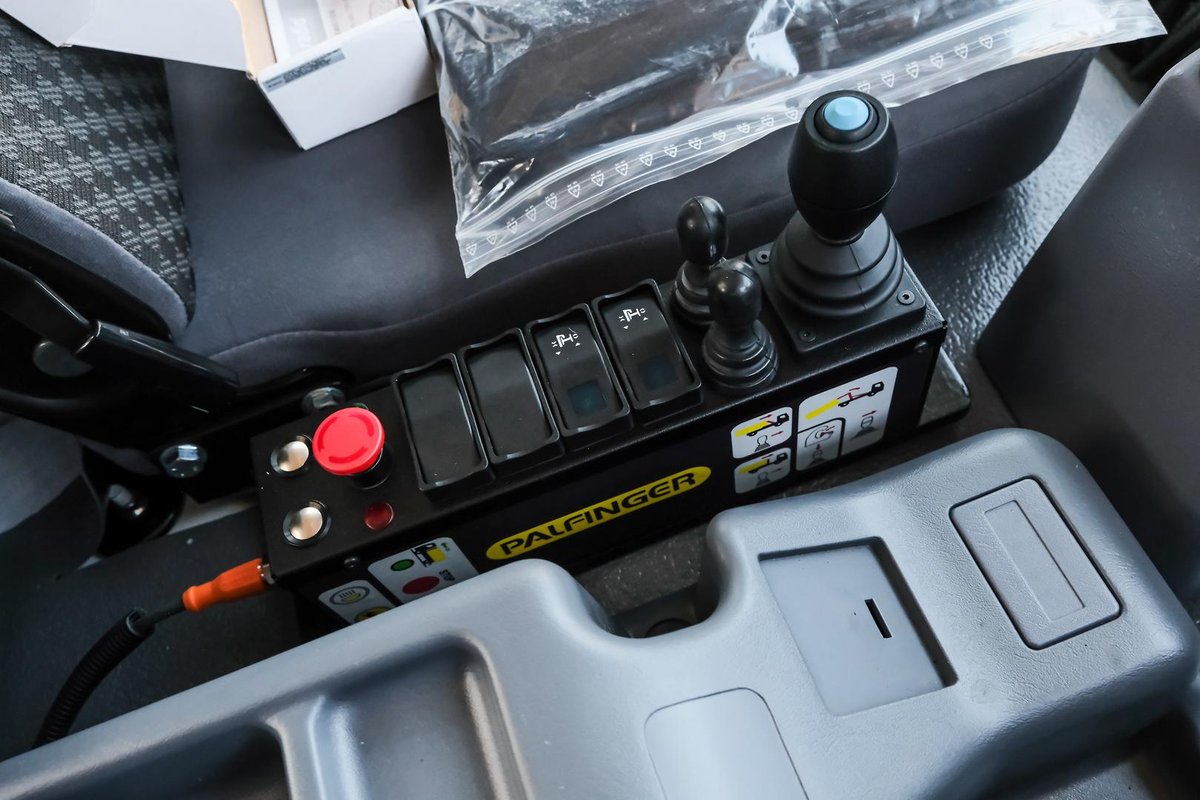

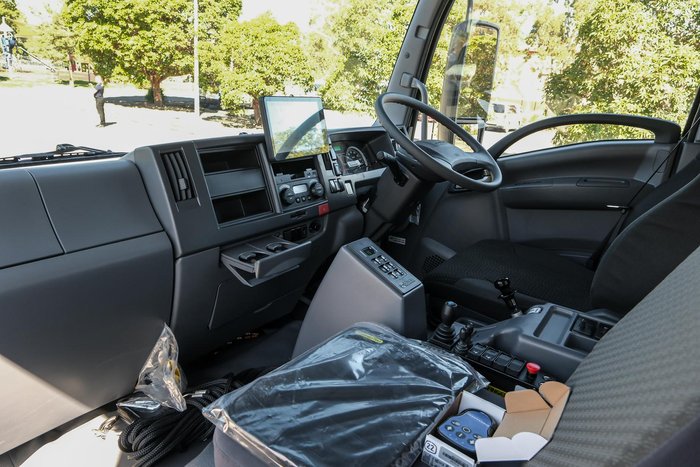

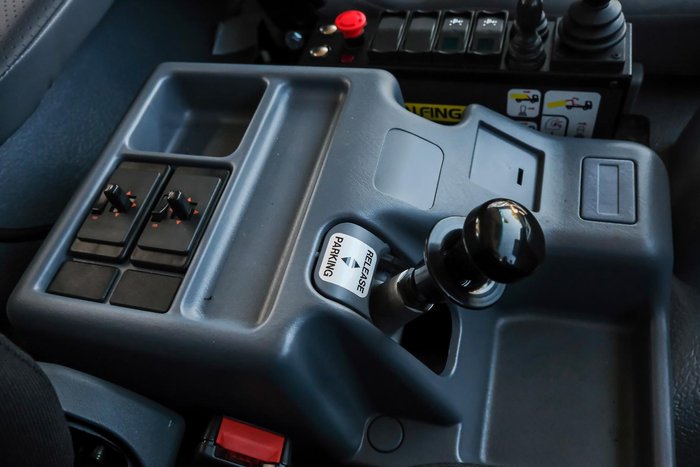

In cab PAD controls.
-
Hydraulic rear bin locks: - mm outside. Inside – 660 mm.
-
Anti-buckling system (fuse on tipping frame locking).
-
Optional front bin locks 1200-840 mm outside locking only.
-
Pneumatic safety hook.
-
Oil tank.
-
Painted RAL 9005 - Black.
-
Fitted to suitable chassis; including mudguards, rear bumper, manufacturer’s tail lights, and clearance lights
Pump Capacity:
-
Pump pressure: 310 Bar
-
Pump volumetric flow rate: 80 L/min (for a SDS150 valve bank)
Warranty:
-
12-36 months. Warranty work shall be carried out by Palfinger designated workshops

Standard Features:
ADR 42 Compliant Sleeper with Mattress
Emissions – Cooled EGR with Exhaust Diesel Oxidation Catalyst (DOC)
ADR 80/03 Euro V / EEV Compliant
Exhaust Braking Assist
Direct Injection High Pressure Common Rail System
400L Frame Mounted Lockable Steel Fuel Tank
90° Opening Internally Reinforced Doors
Heated and Power Adjusted Top Mirrors and Bottom Convex Spot
Mirrors
Central Locking with Remote Entry and Immobiliser

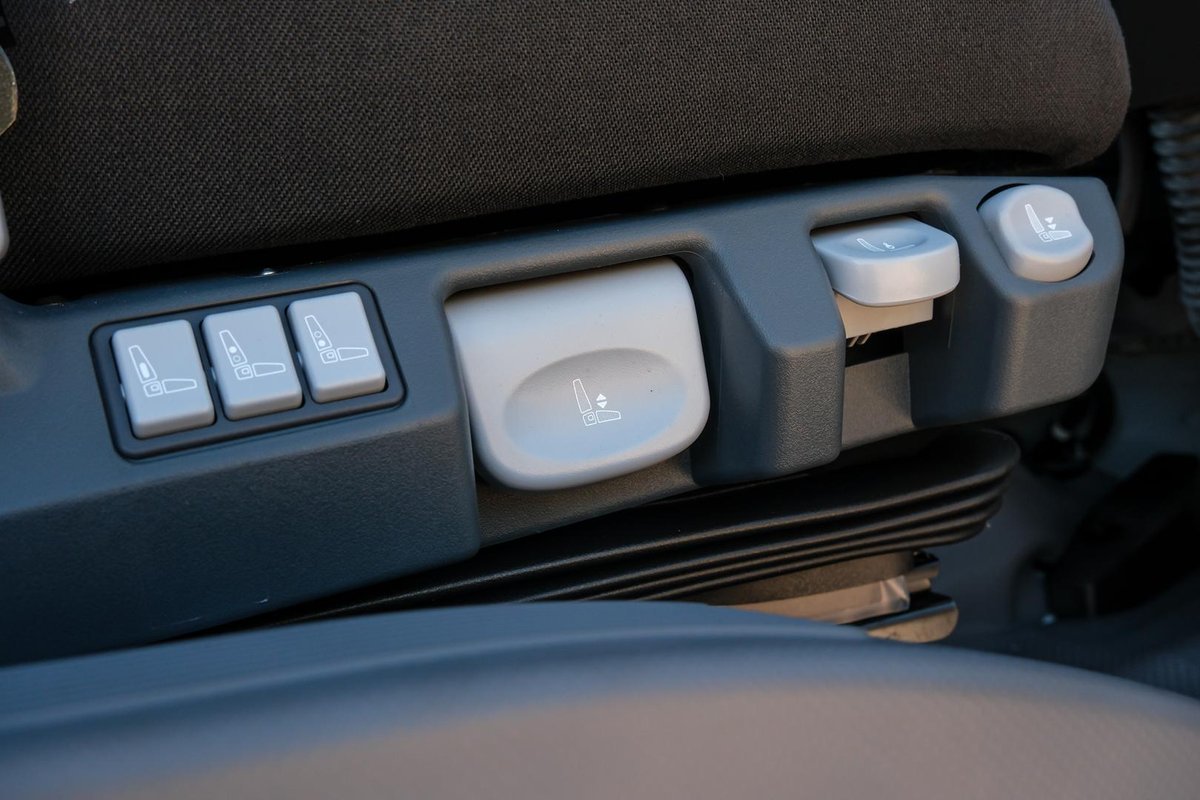

Driver’s ISRI 6860/875 NTS Air Suspension Seat

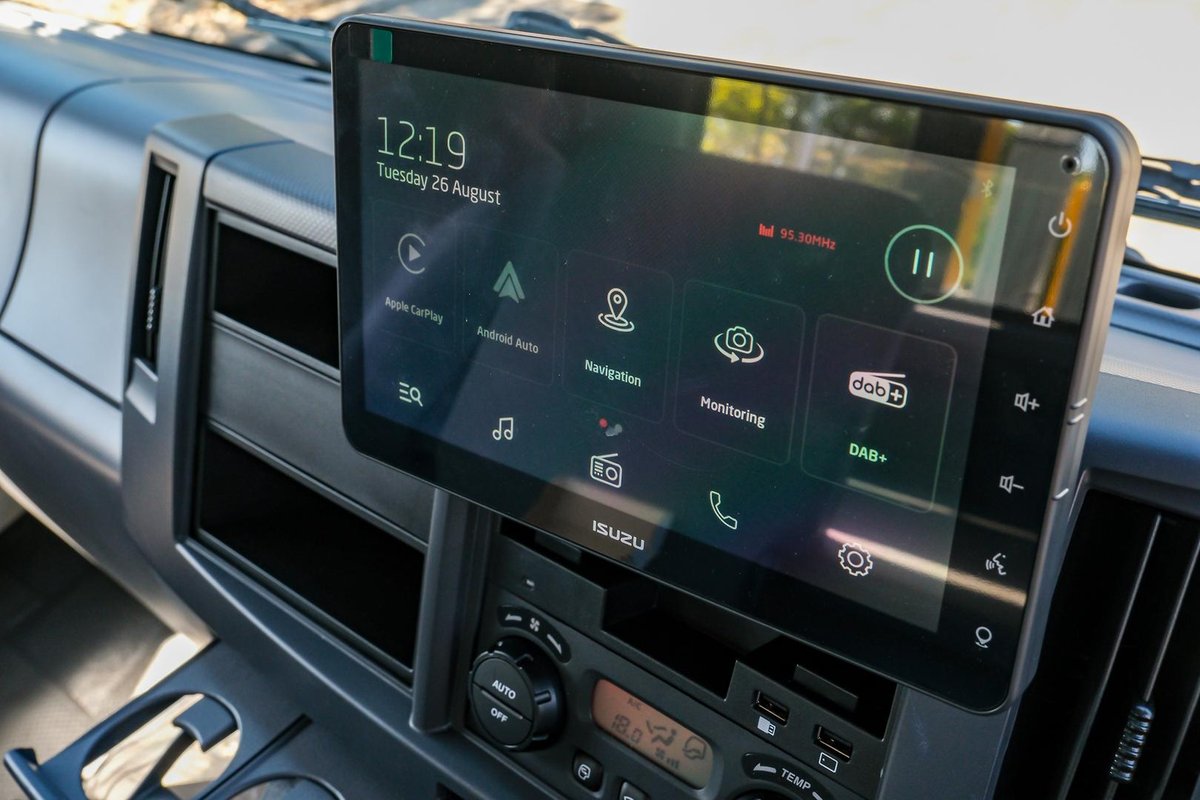

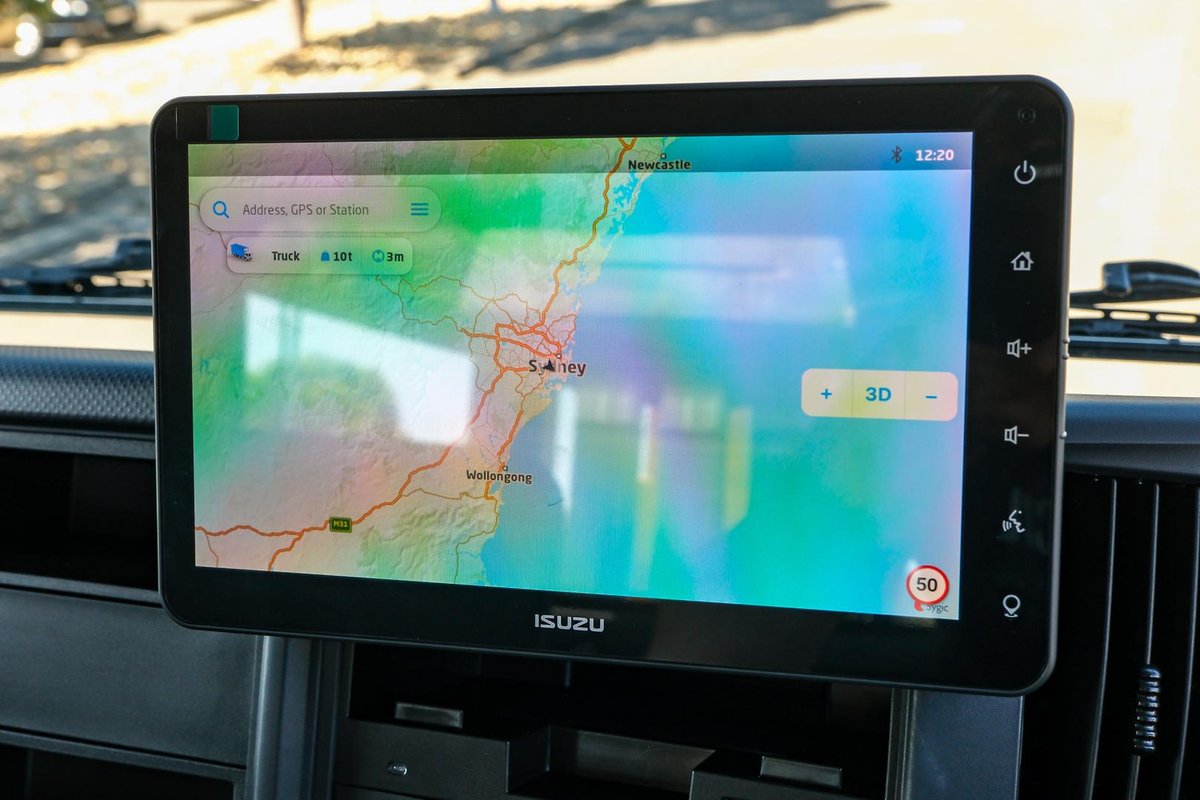

10.1" 1080p High-Definition Audio Visual Unit with Capacitive Touch

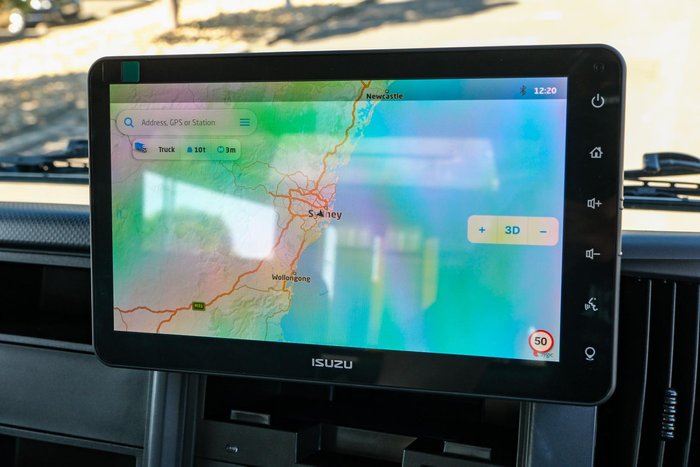

Truck Tailored GPS Based System
Android Auto / Apple CarPlay Compatible

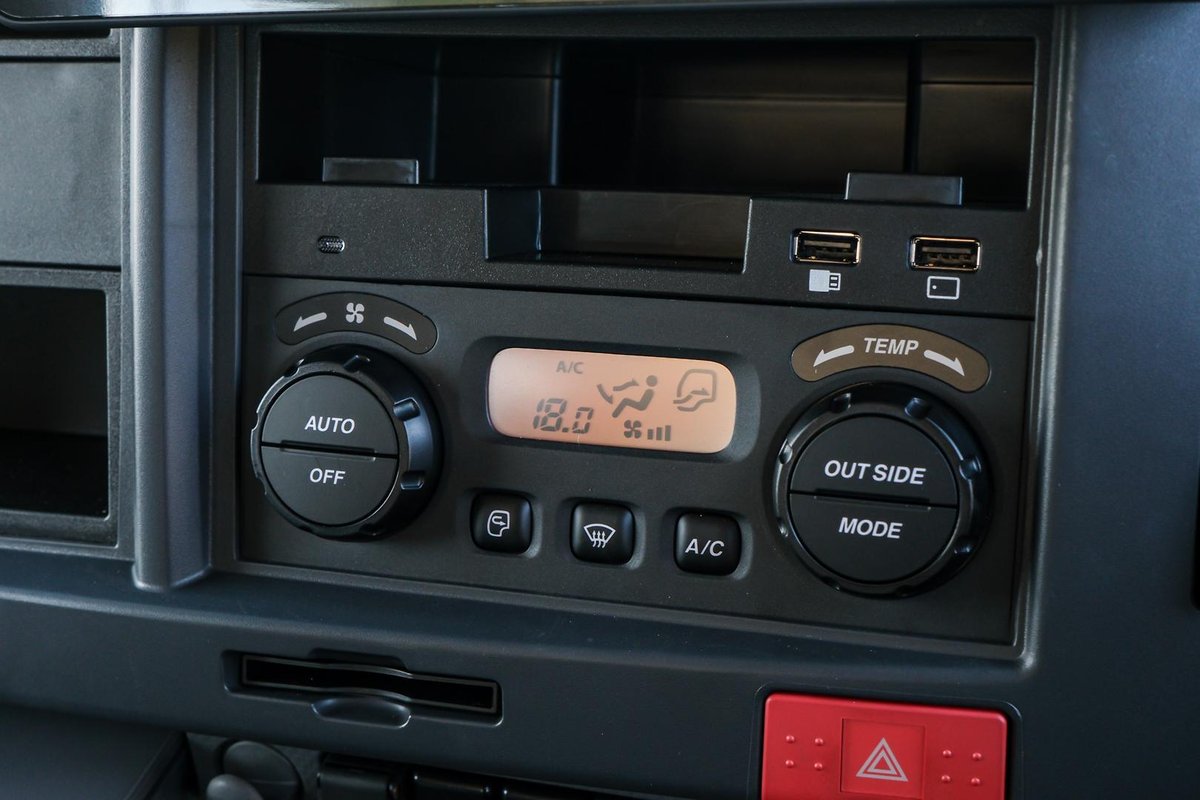

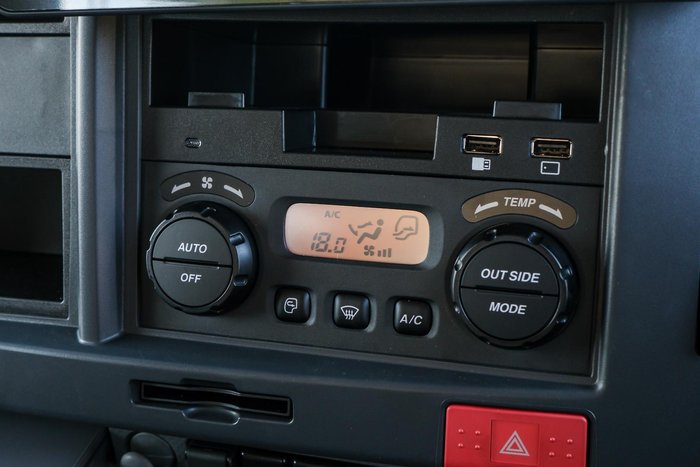

USB 3.0 Socket
